| Place of Origin: | USA |
| 브랜드 이름: | Invensys Triconex |
| 인증: | COC |
| Model Number: | 9662-610 |
| Minimum Order Quantity: | 1 Piece |
|---|---|
| 가격: | inquiry |
| Packaging Details: | original |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 10 Piece per a day |
| Name: | 9662-610 7760050028 Invensys TRICONEX Terminal Board | Model: | 9662-610 |
|---|---|---|---|
| Package: | STANDARD | Warranty: | 12 months |
| Gross Weight: | 2.2 lbs / 35.2 oz / 1kg | Packing Size: | 7" x 7" x 4" (18 cm x 18 cm x 10 cm) |
| Lead time: | 1~3 Days | Quality: | 100%Brand |
| Product name: | Terminal Board | Stock: | Available |
| 강조하다: | Triconex terminal board 24VDC,TRICONEX 9662-610 terminal board,DCS terminal board with warranty |
||

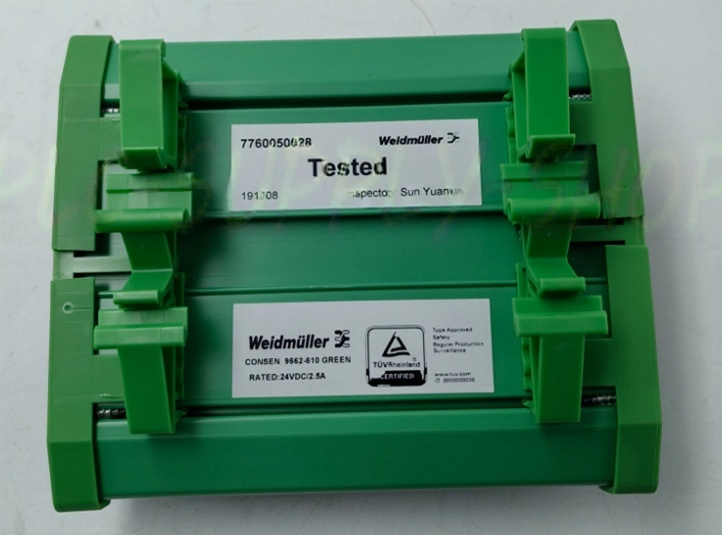

9662-610 7760050028 Invensys TRICONEX Terminal Board
Product Details:
| Brand Name | Invensys Triconex |
| Model | 9662-610 |
| Catalog | TMR architecture |
| Origin | United States (USA) |
| Dimension | 16*16*12cm |
| Weight | 1kg |
| HS Code | 8537101190 |
| Payment | T/T |
| Sales Price | $400 |
| Warranty | 12 months |
| Lead time | 3-5 work days |
Description:
Termination panel 9662–610 is compatible with 24 VDC digital output modules and has 16 load
terminals and commoned power terminals (PWR+ and PWR–).
When using 32-point modules, you must use two term panels for each digital output module.
Each term panel comes with two sets of labels: 1-16 and 17-32. For information on how to apply
the labels, see Appendix F, Panel Labels.
Specifications
This table describes specifications for 9662–610.
Compatible Modules
This table describes digital output modules compatible with 9662–610.
CAUTION Use termination panel 9662-610 with self-protected modules only.
Table 67 Specifications for Term Panel 9662–610
Feature Description
Panel type Commoned
Points 16
Maximum total current1
1. When the 9662-610 panel is used with the Model 3625 DO Module, the maximum total current is 10
amps per termination panel to limit the power dissipation of the module.
16 amps
Table 68 Modules Compatible with 9662–610
Module Part
Number
Points per
Module Module Description
3624 16 24 VDC, commoned, supervised, opto-isolated, self-protected, TMR
3625 32 24 VDC, commoned, supervised/non-supervised, opto-isolated,
self-protected, TMR
3664 32 24 VDC, commoned, opto-isolated, self-protected, dual
3674 32 24 VDC, commoned, opto-isolated, self-protected, dual
