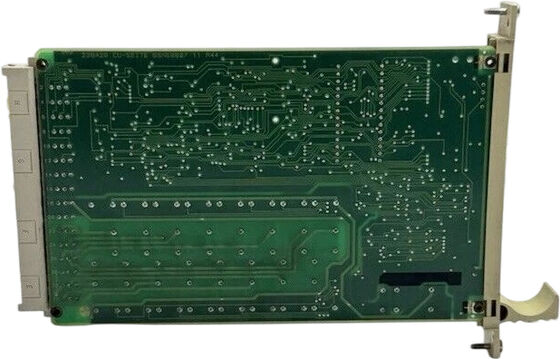

23BA20 GSNE000700R5312 ABB Binary Output Board 16 CHANNEL 24-60 VDC

23BA20 GSNE000700R5312 ABB Binary Output Board 16 CHANNEL 24-60 VDC

  • 23BA20 GSNE000700R5312 ABB Binary Output Board 16 CHANNEL 24-60 VDC
  • 23BA20 GSNE000700R5312 ABB Binary Output Board 16 CHANNEL 24-60 VDC
23BA20 GSNE000700R5312 ABB Binary Output Board 16 CHANNEL 24-60 VDC
제품 상세 정보:
원래 장소: 스웨덴
브랜드 이름: ABB
인증: COC
모델 번호: 23ba20
결제 및 배송 조건:
최소 주문 수량: 1개 조각
가격: 1500
포장 세부 사항: 원래의
배달 시간: 5-8 근무일
지불 조건: 티/티
공급 능력: 하루에 10 개
접촉
상세 제품 설명
이름: 23BA20 GSNE000700R5312 모델: 23ba20
패키지: 기준 보증: 12개월
총중량: 2.2 lbs / 35.2 oz / 1kg 포장 크기: 7 "x 7"x 4 "(18 cm x 18cm x 10 cm)
리드타임: 1~3일 품질: 100%브랜드
재고: 사용 가능
강조하다:

ABB binary output board 16 channel

,

ABB module 24-60 VDC

,

binary output board with warranty

23BA20 GSNE000700R5312 ABB Binary Output Board 16 CHANNEL 24-60 VDC
Product Specifications
Brand Name ABB
Model 23BA20
Product ID GSNE000700R5312
Catalog Procontrol
Origin SWEDEN
Dimension 16*16*12cm
Weight 0.5kg
HS Code 8537101190
Payment T/T
Sales Price $1500
Warranty 12 months
Lead time 3-5 work days
Product Description

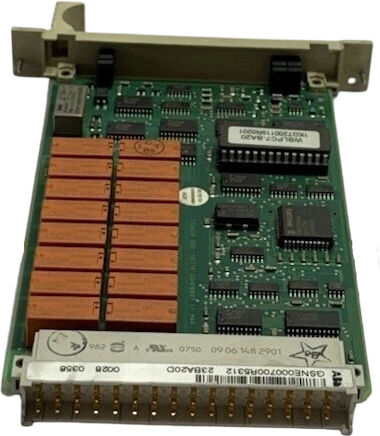

The 23BA20 board features sixteen output relays, organized into two independent groups of eight. Each group shares a common return contact, allowing the output channels to be powered by just two separate process voltage sources. This grouped design simplifies wiring and provides flexible integration into various control system architectures.
Output operation is managed by an integrated I/O microcontroller, the Input-Output Processor (EAP). The EAP activates specific outputs based on command requests received from the Communication Unit's (CMU) central processing module (VAP). It precisely controls the timing of pulse outputs by executing commands based on pre-loaded pulse length values, ensuring accurate and timed control signals.
The board incorporates comprehensive diagnostic and supervision functions for maximum reliability. The EAP performs a read-back of the output pattern before activation to verify commands. During an active output, it continuously monitors the 24V DC supply from the backplane bus that powers the relays. Furthermore, the EAP supervises the actual pulse duration, and any detected error is immediately indicated via onboard LED status indicators.
Additional Information
N/M N/M
YXU168E YT204001-JB/1
SDCS-IOE-2C 64018019
DATX 133 3ASC25H219
23BA20 GSNE000700R5312 ABB Binary Output Board 16 CHANNEL 24-60 VDC 0
