531X305NTBAPG1 GE Terminal Drive Board for EX2000 Excitation System with NTB/3TB Terminal Board

531X305NTBAPG1 GE Terminal Drive Board for EX2000 Excitation System with NTB/3TB Terminal Board

  • 531X305NTBAPG1 GE Terminal Drive Board for EX2000 Excitation System with NTB/3TB Terminal Board
  • 531X305NTBAPG1 GE Terminal Drive Board for EX2000 Excitation System with NTB/3TB Terminal Board
531X305NTBAPG1 GE Terminal Drive Board for EX2000 Excitation System with NTB/3TB Terminal Board
제품 상세 정보:
원래 장소: 미국
브랜드 이름: GE
인증: CO
모델 번호: 531X305NTBAPG1
결제 및 배송 조건:
최소 주문 수량: 1개
가격: $1750
포장 세부 사항: 6.4" x 6.4" x 4.8" (16cm x 16cm x 12cm)
배달 시간: 5-8 근무일
지불 조건: 티/티
공급 능력: 10pcs
접촉
상세 제품 설명
브랜드 이름: GE 모델: 531X305NTBAPG1
상태: 새로운 총중량/배송 중량: 2.2 lbs / 35.2 oz / 1kg
포장 크기: 6.4" x 6.4" x 4.8" (16cm x 16cm x 12cm) 원산지/원산지: 미국 (USA)
리드타임: 재고 있음 배송 포트: 아모이
지불: 티/티 판매 가격: 문의
색상: 재료에 따라 다름 보증: 12개월
리드타임: 5-8 근무일 특사 파트너들: DHL, UPS, TNT, 페덱스, EMS
강조하다:

531X305NTBAPG1 Terminal Drive Board

,

EX2000 Excitation System Terminal Drive Board

,

NTB/3TB Terminal Board GE Terminal Board

531X305NTBAPG1 GE TERMINAL DRIVE BOARD EX2000 Excitation System
The 531X305NTBAPG1 is a GE Terminal Drive Board designed for the EX2000 Excitation System.
Product Specifications
Brand Name GE
Model 531X305NTBAPG1
Catalog Mark VI
Origin United States (USA)
Dimension 16*16*12cm
Weight 1kg
HS Code 8537101190
Payment T/T
Sales Price $1750
Warranty 12 months
Lead time 3-5 work days
Additional Information
N/M N/M
GEH-6421 Mark VI Turbine Control System Guide
GEH-6403 Control System Toolbox for Configuring a Mark VI Controller
GEH-6408 Control System Toolbox for Configuring the Trend Recorder
Product Description

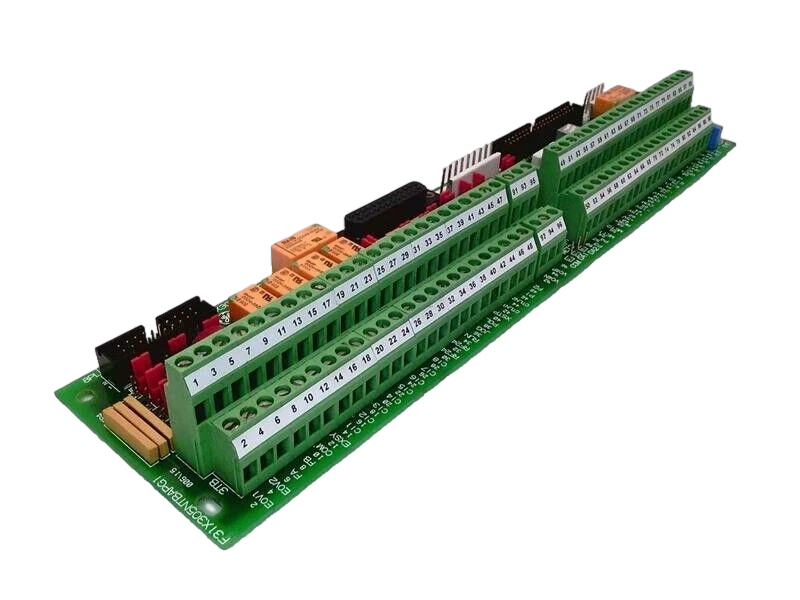

The 531X305NTBAPG1 GE is an NTB/3TB Terminal Board developed by GE under the EX2000 Excitation system. The drive (or exciter) cabinet houses the 531X305NTB (NTB/3TB) board. The drive's (or exciter's) connection terminals for the majority of external signal-level I/O are located on the board, along with passive interface circuitry.
Key Features:
  • Features a differential A-guad-B encoder interface with a marker channel for connection to the drive
  • Optical isolation: The encoder circuit is optically isolated on the drive control board
  • Setup Flexibility: Jumpers enable configuration for +5 V or +15 V encoders
  • Hardware jumpers are used to bias disconnected inputs to +24 or -24 V dc depending on whether positive or negative logic is employed
Plugs 6PL and 8PL from the drive control board, plugs 2PL and 4PL from the power supply board, plug COMPL from the terminal board 3TB, and plugs 2PL and 4PL from external equipment connect to the NTB/3TB.
531X305NTBAPG1 GE Terminal Drive Board for EX2000 Excitation System with NTB/3TB Terminal Board 0
