GE Mark VI Discrete Input/Output Terminal Board with 24 Channels and 16-145 V DC Wetting Voltage

GE Mark VI Discrete Input/Output Terminal Board with 24 Channels and 16-145 V DC Wetting Voltage

  • GE Mark VI Discrete Input/Output Terminal Board with 24 Channels and 16-145 V DC Wetting Voltage
  • GE Mark VI Discrete Input/Output Terminal Board with 24 Channels and 16-145 V DC Wetting Voltage
GE Mark VI Discrete Input/Output Terminal Board with 24 Channels and 16-145 V DC Wetting Voltage
제품 상세 정보:
원래 장소: 미국
브랜드 이름: GE
인증: CO
모델 번호: IS200TDBTH6A
결제 및 배송 조건:
최소 주문 수량: 1개
가격: $4000
포장 세부 사항: 6.4" x 6.4" x 4.8" (16cm x 16cm x 12cm)
배달 시간: 5-8 근무일
지불 조건: 티/티
공급 능력: 10pcs
접촉
상세 제품 설명
브랜드 이름: GE 모델: IS200TDBTH6A
상태: 새로운 총중량/배송 중량: 2.2 lbs / 35.2 oz / 1kg
포장 크기: 6.4" x 6.4" x 4.8" (16cm x 16cm x 12cm) 원산지/원산지: 미국 (USA)
리드타임: 재고 있음 배송 포트: 아모이
지불: 티/티 판매 가격: 문의
색상: 재료에 따라 다름 보증: 12개월
리드타임: 5-8 근무일 특사 파트너들: DHL, UPS, TNT, 페덱스, EMS
강조하다:

24 Channels Terminal Board

,

16-145 V DC Wetting Voltage Terminal Board

,

Mark VI I/O Terminal Board

IS200TDBTH6A GE Mark VI Discrete Input/Output Terminal Board - 24 Channels
Product Specifications
Brand Name GE
Model IS200TDBTH6A
Catalog Mark VI
Origin United States (USA)
Dimension 16×16×12cm
Weight 1kg
HS Code 8537101190
Payment T/T
Sales Price $4000
Warranty 12 months
Lead time 3-5 work days
Additional Information
GEI-100165 GEDS Standard Message Format (GSM)
GFK-1396 CIMPLICITY HMI CimEdit Operation Manual
GEH-6408 Control System Toolbox for Configuring the Trend Recorder
Product Description

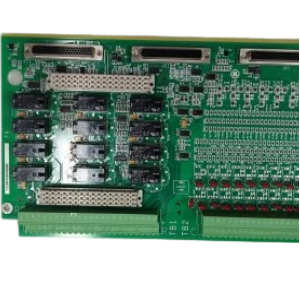

The GE IS200TDBTH6A is a Discrete Input/Output Terminal Board manufactured by General Electric as part of the Mark VIe Series for Distributed Control Systems. This flat or DIN-rail mounted TMR contact input/output terminal board features:
  • 24 group-isolated contact inputs with external wetting voltage support (24V, 48V, or 125V DC)
  • Built-in noise suppression for protection against surges and high-frequency noise
  • 12 form-C relay outputs for enhanced relay functionality
  • Option card compatibility for expanded capabilities
  • Onboard signal conditioning identical to STCI, scaled for 24V, 48V, and 125V DC wetting voltage
  • Input voltage ranges: 16-32V DC, 32-64V DC, and 100-145V DC respectively
  • Current-limited contact inputs (2.5mA for circuits 1-21, 10mA for circuits 22-24)
  • 0.5A current limitation on 24V DC supply using resettable polymer PTC fuses
The wetting voltage is set at half of the threshold voltage for optimal performance. The I/O pack includes detailed touch-sensing circuitry diagrams for precise configuration.
GE Mark VI Discrete Input/Output Terminal Board with 24 Channels and 16-145 V DC Wetting Voltage 0
